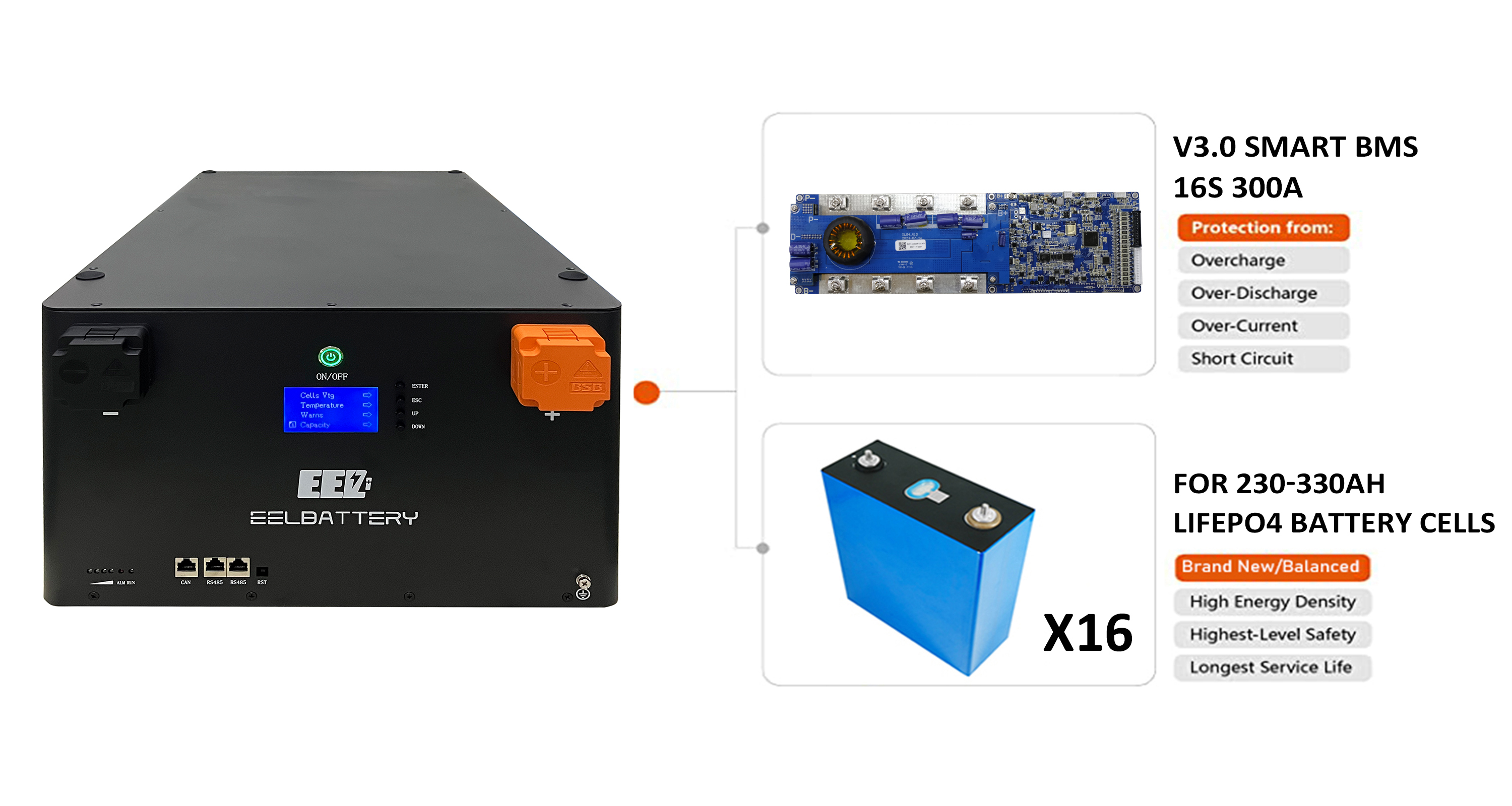

EEL 48V 16S Server Rack DIY Kit BOX Built-in Seplos V4.0 300A High Current Bluetooth BMS for ESS Solar Energy Storage

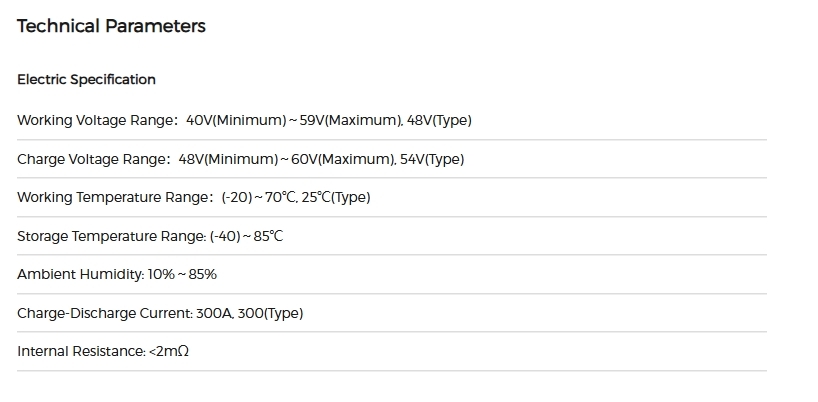

Specification

Battery Type:230/280/302/MB30/MB31/330Ah Cells
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S BMS
Nominal Voltage:51.2V
Current:300A
Warranty:2 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*730*263mm
Stackable Type:up to 14 batteries

Parts List(does not come with the battery cells)

1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
1 * 350A professional fuse with fuse holder
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S 300A Seplos V4.0 BMS+2*BMS wires
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2 * Professional Battery Terminals (P+ Terminal and P- Terminal)
5 * Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10 * EVA Tape (Between cells)
Other Small Accessories

Download the software:

https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Notice:Free DDP shipping from China with 40-50 working days for delivery.
