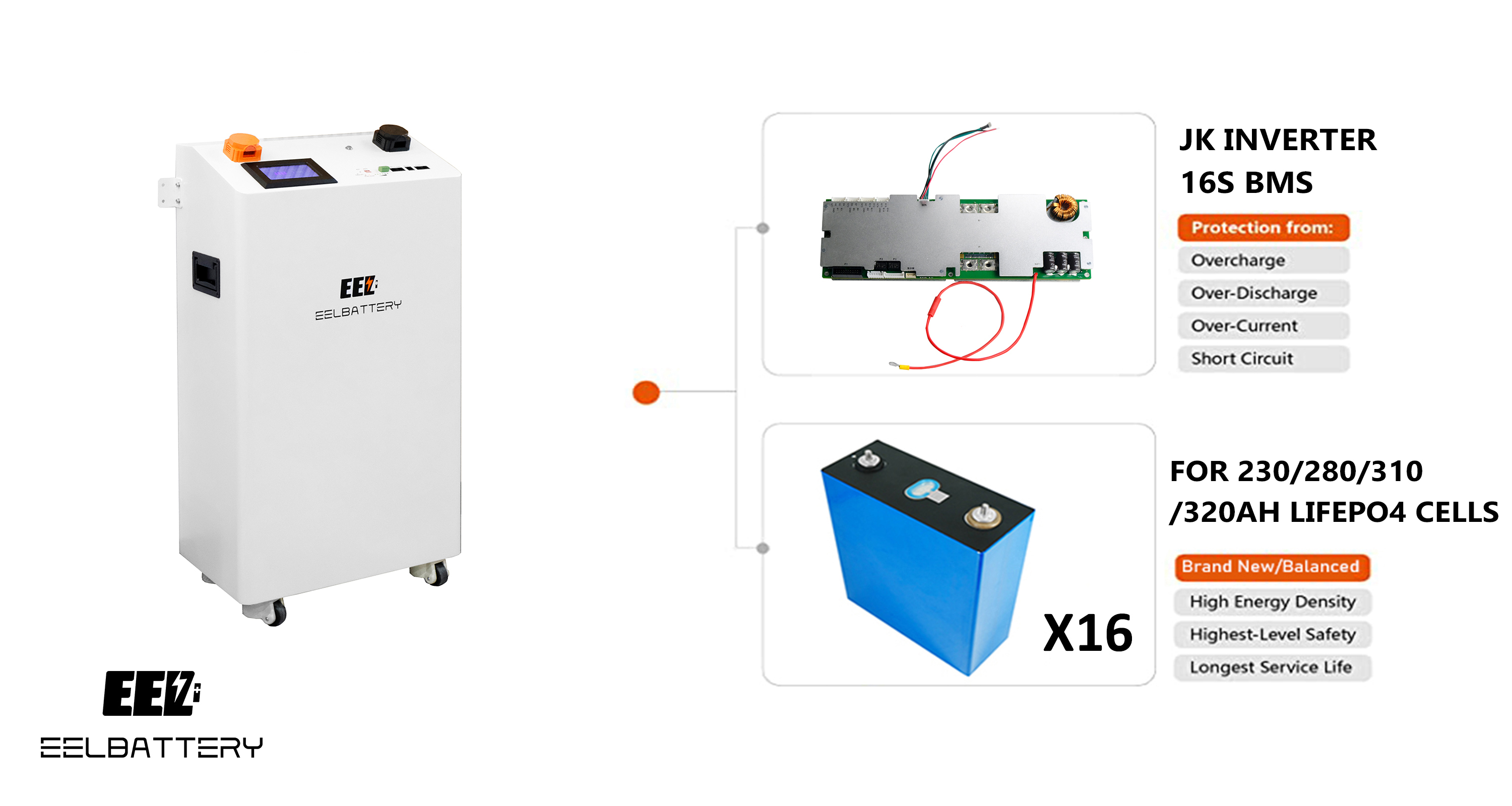

EEL 48V 16S Vertical DIY Battery Box Built-in JK BMS Inverter 2A Active Balance standing type with wheels

stars, based on ( 0 ) review
$529.00 carton
84items available
Contact Us
EEL BATTERY OFFICIAL STORE

Specification



Battery Type:280/302Ah Cell
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S BMS
Nominal Voltage:51.2V
Current 200A
Warranty:2 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*700*263mm

Parts List(does not come with the battery cells)

1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
10 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * JK LCD display with a weak electric switch

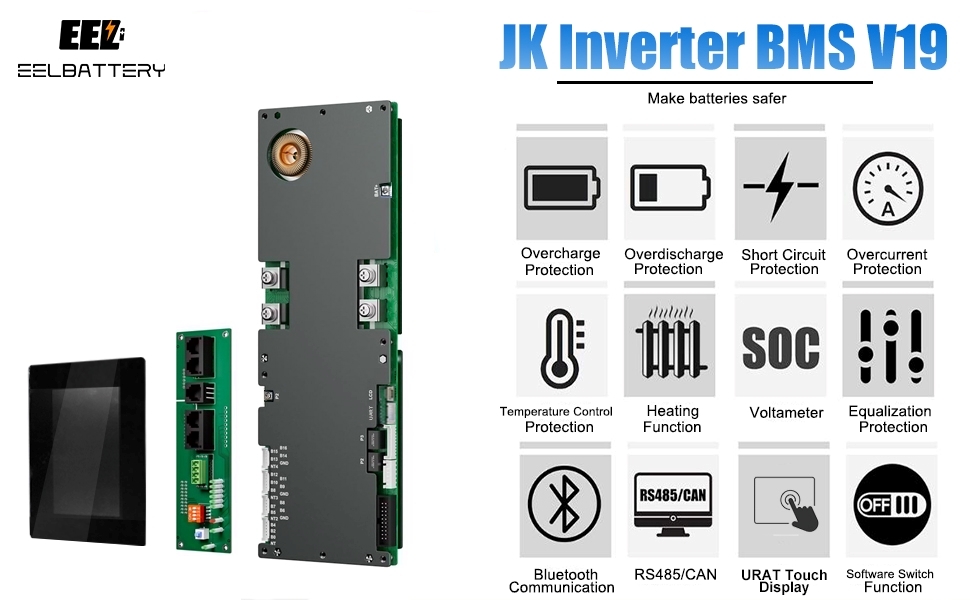

1 * 48V 16S  JK BMS+2*BMS wires+1*adapter
1 * Circuit Breaker
2 * Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handles
4 * wheels
15 * EVA Tape (Between cells)/15 epoxy boards
Other Small Accessories

Notice: Because we ship the Package from China,the shipping time will be 40-50 days.
